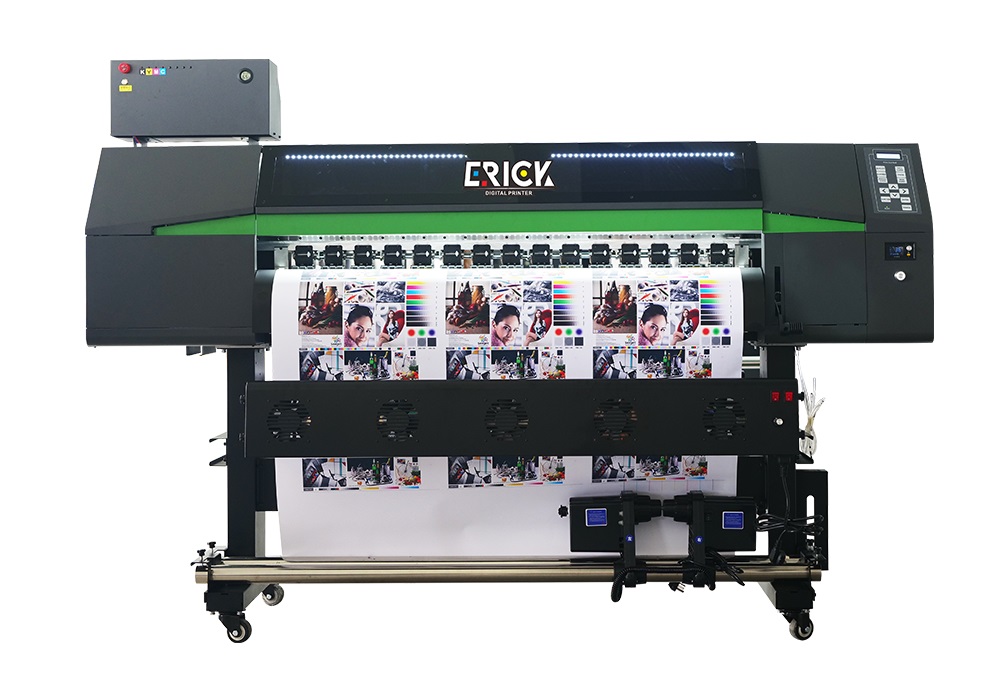

ER-SUB1301 Sublimation Printer

Equipped with Epson i3200-A1 printhead for precise and detailed sublimation printing.
Uses Leadshine servo motor and THK guide rail for smooth and accurate movement.
Integrated heating system ensures stable drying performance and consistent output quality.
Features ink alarm system, lifting capping station, and user-friendly RIP software compatibility.

The ER-SUB1301 sublimation printer is a compact and reliable transfer printing solution designed for customized textile production, apparel printing, and small-to-medium batch applications. Equipped with 1 Epson i3200-A1 printhead, the printer delivers high-quality output with a maximum printing width of 1300mm. It features a Leadshine servo motor, THK precision guide rail, lifting capping station, and intelligent temperature control system to ensure stable operation and consistent printing performance. With a suction platform and infrared heating system, the ER-SUB1301 provides smooth media handling and efficient drying for sublimation transfer paper printing.

ER-SUB1301 Sublimation Printer Video

ER-SUB1301 Sublimation Printer Details

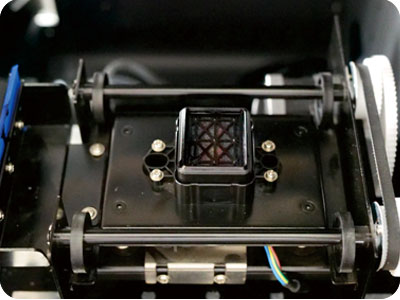

Liftting Capping Station

Ink Alarm

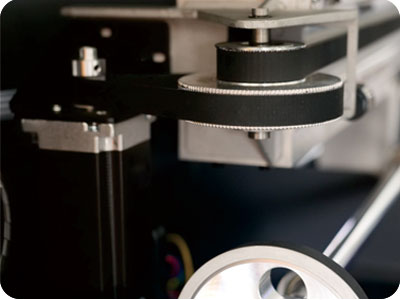

Leadshine Servo Motor

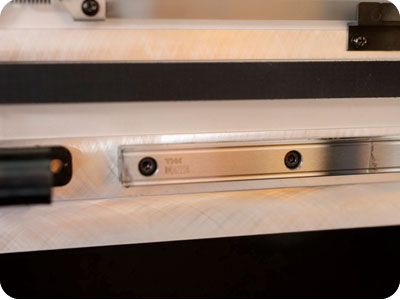

THK Guiderail

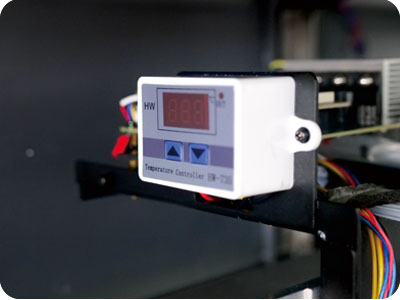

Tempreature Controller

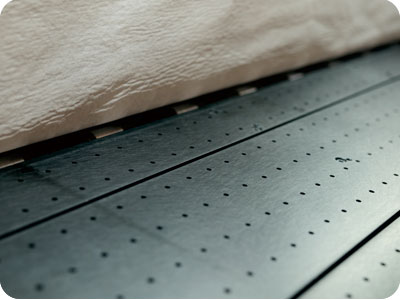

Suction Platform

ER-SUB1301 Sublimation Printer Specification

Working EnvironmentTempreature 15℃-32℃， Humidity:40%-70%(non-condensing)

Model No.	ER-SUB1301
Printing Speed	4pass 21㎡/h 720*1200dpi
Printer Head	1pc Epson I3200-A1
Max Print Size	1300mm
Max Print Height	15mm
Motor Brand	Leadshine
Guiderail Brand	THK
Nozzle Number	3200
Ink Colors	CMYK
Ink Type	Sublimation Ink
Ink Alarm	Yes
Ink Tank	800ml for each
Rip Software	Ripprint/Maintop7.0
File Format	JPG,TIFF,PDF
Power Cosumption	2500W
Mainboard Brand	Hoson
Printing Quality	True Printing Quality
Voltage	AC110V/220V 50/60HZ
Printing Material	Transfer Paper
Interface	LAN
Operation System	Window7/8/10
Power Consumption	500W
Drying Device	Infrared heating lamp 450W*3
Machine Size	22559331539(H)mm,190kgs
Package Info	2800750750mm, 250kgs
