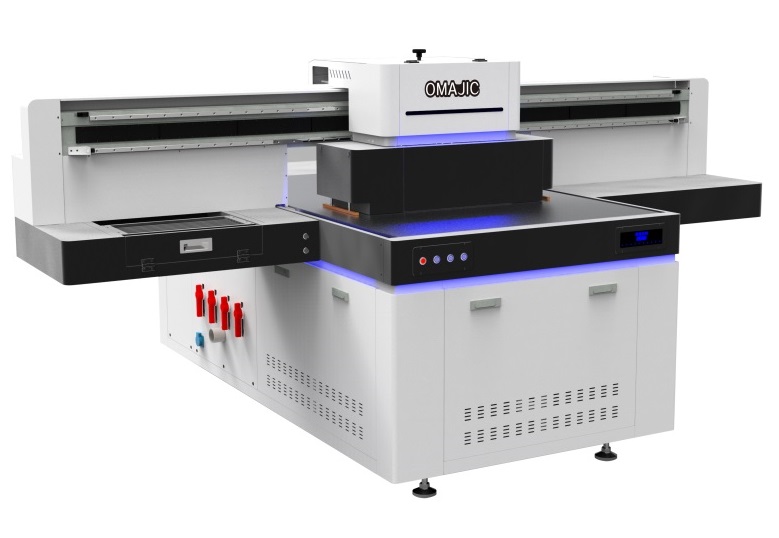

The OM-UV1016 MAX UV flatbed printer is a powerful and versatile printing device,especially suitable for small and medium-sized enterprises in industries such as advertising processing, home customization, and personalized gifts. It is an ideal choice for achieving small-batch, multi-variety, and high-value-added production.
OM-UV1016 MAX UV Flatbed Printer Video
ER-UV6090PRO UV Flatbed Printer Details

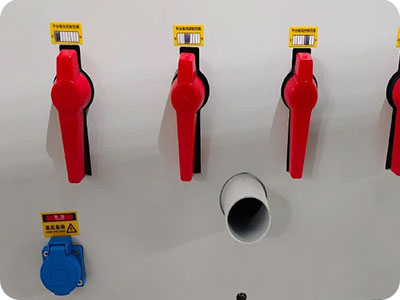

4 Seperated Suction Zone 1500W
Flexible adaptation to material size: Different areas can be turned on/off separately, suitable for small-sized or special-shaped materials, reducing energy consumption.

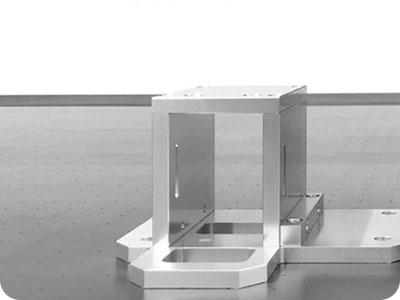

Anti-collision system is equipped
The distance between the print head and the material surface is monitored in real time through a laser/infrared sensor or pressure sensor. When abnormal protrusions (such as warping of the material, foreign matter) are detected, printing is automatically paused to avoid collision and damage to the print head or platform.

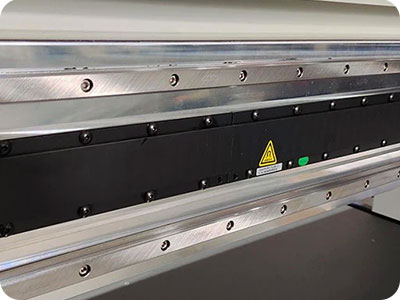

Advanced magnetic levitation transmission
Zero wear: No need to replace the guide rails or sliders regularly, reducing long-term maintenance costs.

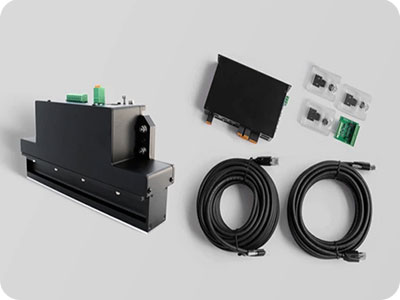

1200dpi Latest UV Carriage Ai Scanner
reduce the time for manual color calibration and positioning, suitable for mass production.
Fluorescent color printing
fluorescent painting on soles and uppers (friction resistance is required).

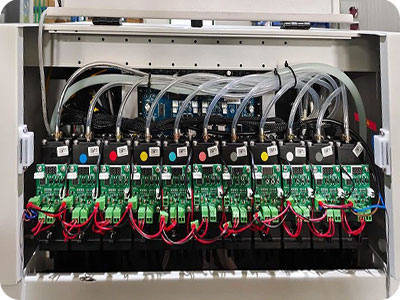

None after-service negative Ink supply system
Prevent ink dripping from the nozzle (ink leakage when negative pressure is insufficient).
ER-UV6090PRO UV Flatbed Printer Specification
| Print Software | Ripprint/Phototprint |
| Printing Speed | 6pass 8㎡/h,8pass 6㎡/h,12pass ㎡/h,I1600: 6pass 4㎡/h,8pass 3㎡/h,12pass 2㎡/h |
| Machine Functions | 130mm Print Height, UV Al Scanner |
| Printing Heads | 3pcs Epson Original I3200U/1600-U |
| Machine Configurations | Hiwin Guiderail, Leadshine Motor, Positive CappingStations, All-In-One Computer(optional) |
| All-In-One Computer Configurations | 8th Generations i7-8750H Processor 64G/128G15.6-inch 1920×1080 Touch Screen |
| Print Colors | CMYK W V |
| Working Environment | 2000W Electricity Power, 25°C-30°C humidty 50%-70% |
| Package Info | 1760*1640*860mm,350KG,2.5m³ |
UV Printing Applications
UV Flatbed Printer with AI Scanner FAQ
UV Flatbed Printer with AI Scanner FAQIt can print in various color schemes, such as fluorescent colors and light colors.
8-head GH2220 (4 colored, 2 white, 1 regular varnish, 1 hot stamping varnish)
Issue: The Y-axis shifts during visual printing on the 1016 model.
Solution: Since the camera scanning position differs from the Y-axis printing position, the Y-axis must be reset prior to every scanning and printing operation.
Issue: White ink and varnish are not being printed.
Solution: The customer has incorrectly named the spot colors; the naming convention does not meet the system requirements. The names should be formatted as “spot_1,” “spot_2,” etc.
Issue: XY printing does not occur at the designated coordinates (e.g., 100, 100).
Solution: The software has not been configured with the correct error compensation settings. Adjust these settings within the “Advanced Settings” menu (Password: 222222) under the “Other” tab.
Issue: The printed Braille characters appear incomplete or fragmented.
Solution: The font’s internal offset (inward contraction) must not be set too aggressively; the setting should be adjusted based on the specific pixel data of the image file.
