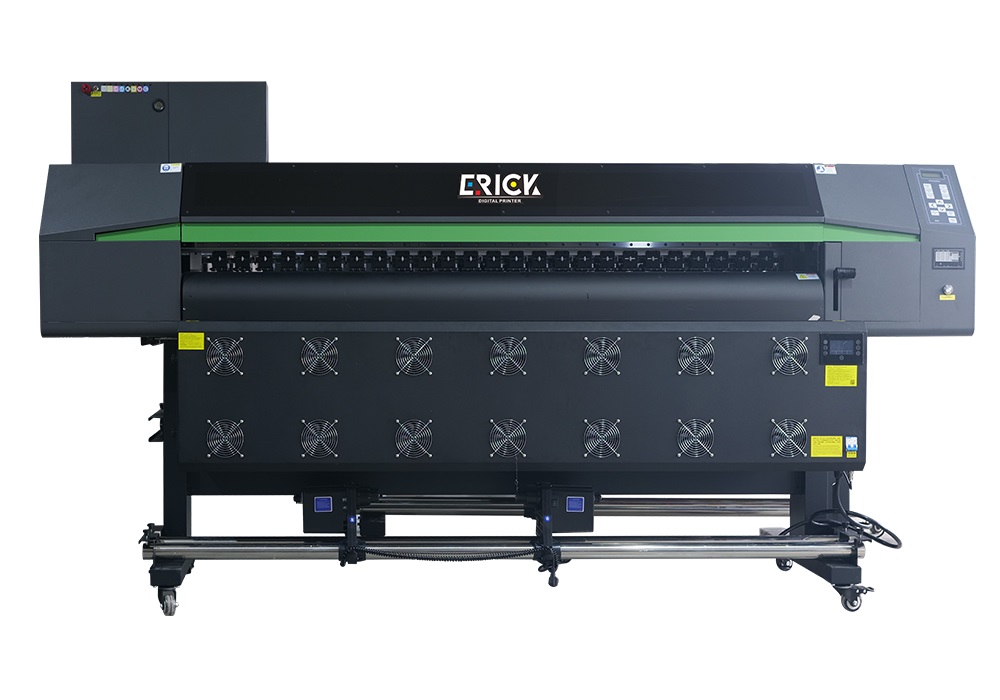

ER-ECO2004PLUS ECO Solvent Printer
- 4pcs Epson i3200-E1 Printheads, High-speed printing with photographic-level image quality.
- 2000mm Maximum Printing Width, Ideal for large-format advertising and commercial printing.
- Leadshine Servo Motor, Provides stable operation and precise positioning.

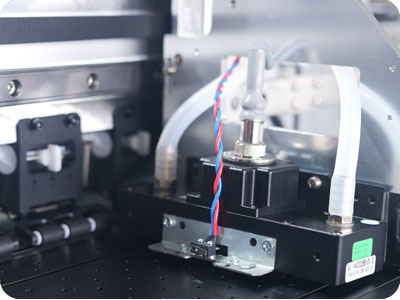

- Automatic Lifting Capping Station, 3mm lifting distance improves printhead protection.
ER-ECO2004PLUS Eco Solvent Printer is a high-performance 2-meter wide eco solvent printing solution equipped with 4pcs Epson i3200-E1 printheads. Featuring industrial-grade THK20 linear guide rails, Leadshine servo motor, aluminum molding frame, and advanced heating & drying systems, it delivers high-speed, high-precision printing for advertising, signage, vehicle graphics, and commercial applications.
ER-ECO2004PLUS ECO Solvent Printer Video
ER-ECO2004PLUS ECO Solvent Printer Details
Aluminum Moulding Frame

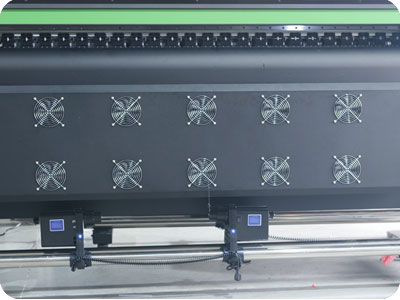

Heating and Drying System
Carriage Anti-Collusion

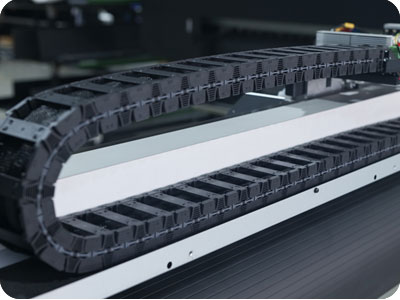

Industrial Drag Chain

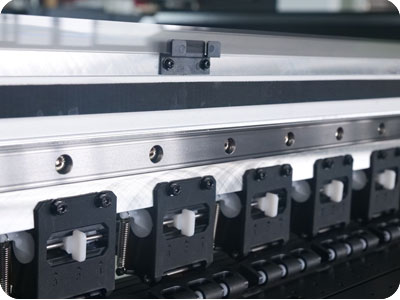

High Quality THK20 Guide Rail

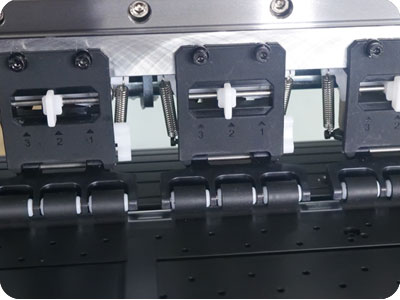

Wide Pinch Roller
ER-ECO2004PLUS ECO Solvent Printer Specification
| Print Software | Maintop/Photoprint |
| Printer Head | 4pcs Epson 13200-E1 Print Head |
| Printing Speed | 4pcs E1,CMYK+LC+LM+Red+Lk 4pass_720*1200:78㎡/h 6pass_720*1800:52㎡/h 8pass_720*2400:40㎡/h |
| Max Print Size | 2000mm |
| Guiderail Brand | THK20 |
| Mainboard Brand | Hoson |
| Printing Quality | True Photographic Quality |
| Nozzle Number | 3200 |
| Ink Colors | CMYK+Lc+Lm+Red+Lk |
| Ink Type | Eco Solvent Ink |
| Printing Technology | Drop-on-demand micro-piezoelectricinkjet technology |
| File Format | TIFF,JPEG,Postscript,EPS,PDF etc. |
| Servo Motor Brand | Leadshine |
| Lifting Capping Station | Yes(3mm) |
| Materials to Print | Inkjet cloth, photo paper, canvas,adhesive, canvas, PP car stickers reflective materials, etc. |
| Ink capacity | 1.5L |
| Platfom heating system | Front,middle,back |
| Anti-collusion system | Yes |
| Voltage | AC-220V 50Hz/60Hz |
| Power Consumption | 7700W,7250W for heating |
| Package Type | Wooden Case |
| Machine Size | 3058*823*1618mm,380kgs |
| Working Environment | 15-30 Degrees. |
| Package Info | 3600*760*1000mm,480kgs |
ER-ECO2004PLUS ECO Solvent Printer Application
ER-ECO2004PLUS ECO Solvent Printer FAQ
