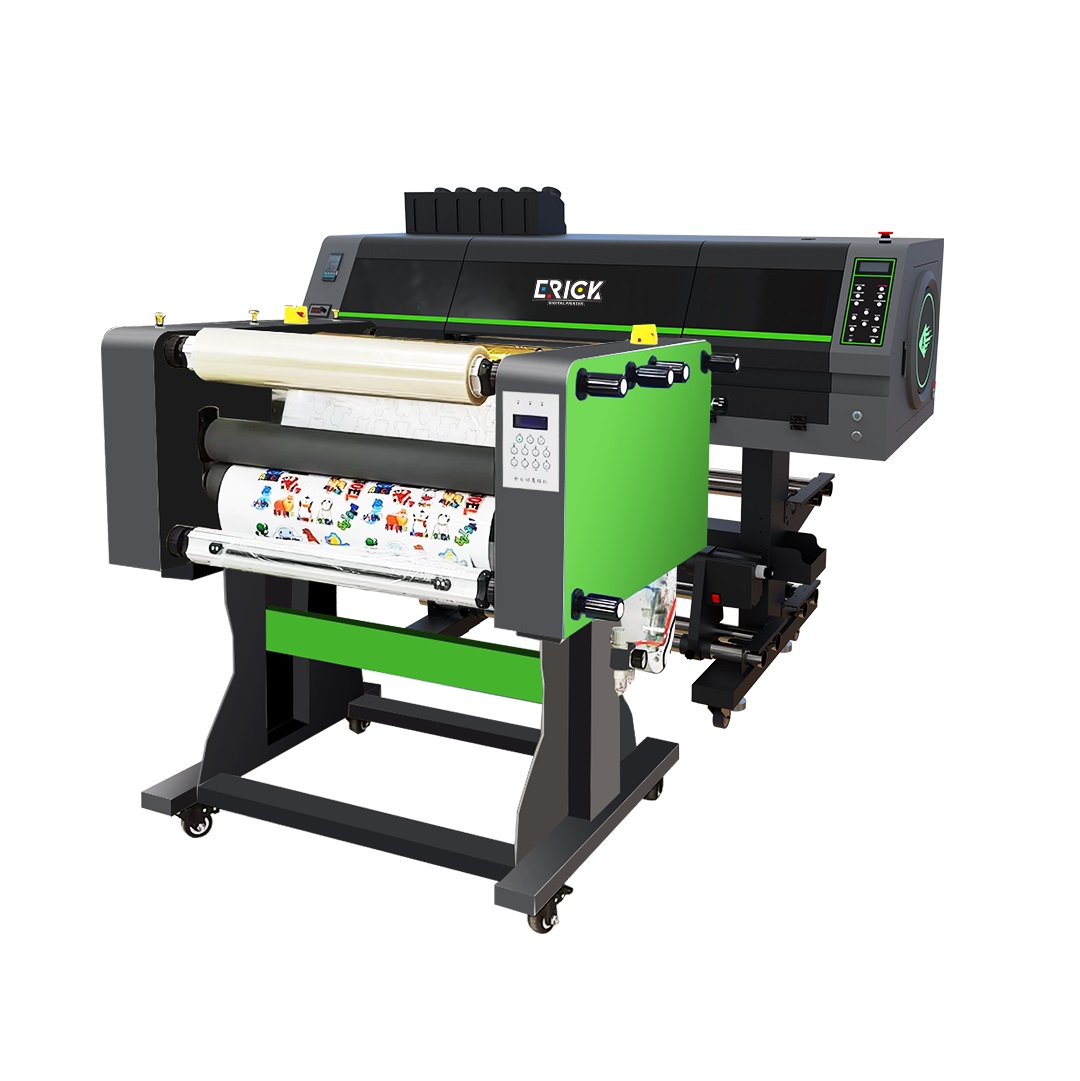

The ER-UVDTF A1 PRO 60cm hot stamping crystal label printer is a powerful and promising high-end digital printing device, especially suitable for companies engaged in advertising production, personalized customization, clothing accessories, packaging and other industries that want to improve product added value and production efficiency.
ERICK UV DTF A1 Printer Video
ERICK UV DTF A1 Printer Details

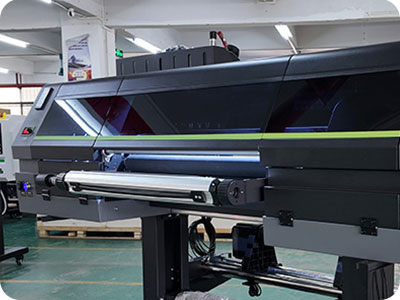

Advanced Roll & Laminate System
Printing and laminating all in one.Achieve high precision roll to roll UV DTF printing. Your highproductivity choice

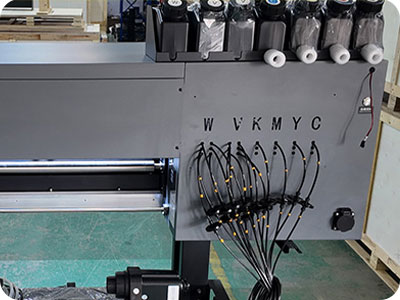

Ink stirring system
Mature time-set stirring system for white ink, effectivelydecreases the problems causedby white ink precipitation.

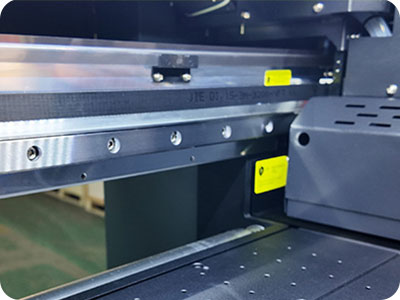

High Quality component
Branded accessories are used for high attrition areas. Greatly increased the lifetime and stability of the machine.For example, the Hiwin guide rail.German lgus drag chain,ltalian Megadyne belt.

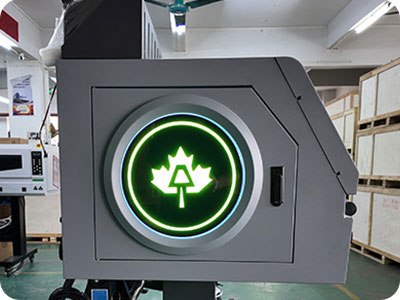

Elegant appearance
Elegant and sleek appearancedesign, not only an advancedprinting equipment, but also adecoration for the company

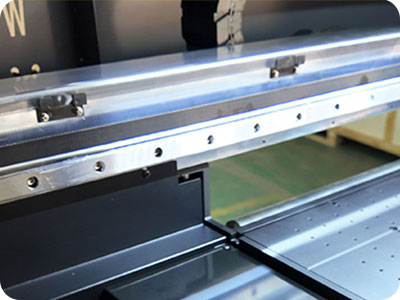

One-time Molding Aluminum Beam
Ensure the high accuracy of each carriage movement.

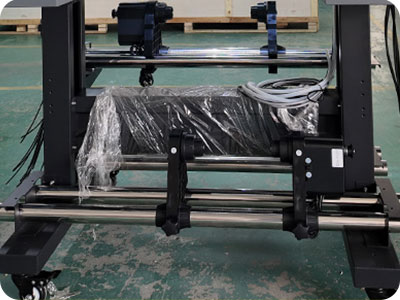

Advanced Media Handling System
Standard media feeding and take-up system. Roll the printedmaterial automaticallyand increase the efficiency
ERICK UV DTF A1 Printer Specification
| Print Software | Ripprint/Phototprint |
| Printing Speed | I3200U 4pass 9㎡/h,6pass 6㎡/h,I1600U 8pass 6㎡/h,12pass 4.5㎡/h |
| Machine Functions | Golden Foil Application, All-In-One Lamination |
| Printing Heads | Hiwin Guiderail, Leadshine Motor)All-In-Qne Computer(optional) |
| All-In-One Computer Configurations | 8th Generations i7-8750H Processor,64G/128G15.6-inch 1920×1080 Touch Screen |
| Print Colors | CMYK W V/CMYK W V Golden Vamish |
| Working Environment | Electricity Power, 25°C-30°C humidty50%-70% |
| Package Info | 2300*900*700mm,230KG, 1.45m³ |
ERICK UV DTF A1 Printer Application
ERICK UV DTF A1 Printer FAQ
ERICK UV DTF A1 Printer FAQPrint the text multiple times (in multiple passes); this ensures that the fine details remain adhered and are not inadvertently removed during the film-peeling process.
Add an additional set of curing lamps, or alternatively, print using only three printheads.
1. The C-film may have been applied with the incorrect side facing down; perform a test to verify the correct orientation of the film.
2. The wrong type of C-film was used; ensure that the correct C-film is utilized.
3. The temperature setting is inappropriate; the film-transfer temperature should be set to approximately 90°C.
To achieve a golden effect, print hot stamping varnish and then apply a thin gold film.
“I3200U: 4pass 9m2/h,6pass 6m2/h;
I600U: 8pass 6m2/h,12pass 4.5m2/h”
