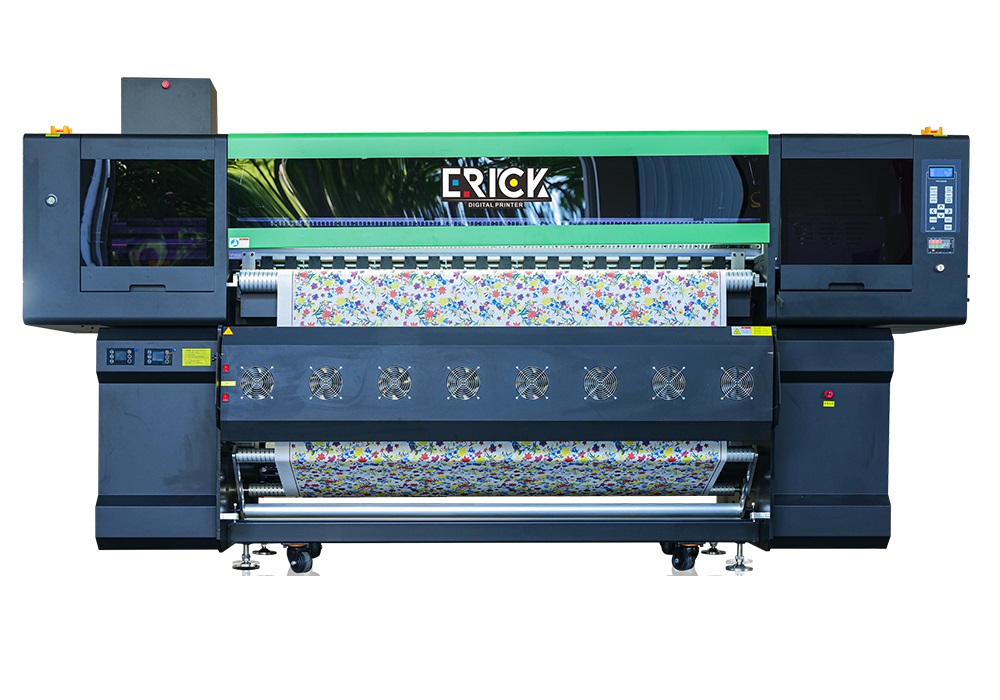

ER-SUB1808PRO Sublimation Printer
- Equipped with 8 Epson i3200-A1 printheads with printing speeds up to 360㎡/h for efficient production.
- Features THK precision guide rail, 200W servo motor, and Hoson mainboard for accurate and reliable operation.
- External automatic drying system and automatic ink replenishment ensure continuous and stable printing.
- Supports 1800mm printing width, 500m media length, and various color configurations for customized textile applications.
The ER-SUB1808PRO sublimation printer is a high-performance textile printing solution designed for professional transfer paper production. Equipped with 8 original Epson i3200-A1 printheads, it delivers outstanding productivity with printing speeds up to 360㎡/h in high-speed mode. Featuring a THK high-precision guide rail, 200W DC servo motor, Hoson mainboard, and automatic ink replenishment system, the printer provides smooth operation and stable printing performance. The integrated external automatic drying system ensures efficient production for large-volume textile applications. With an 1800mm printing width, multiple color configurations, and support for long media rolls up to 500 meters, the ER-SUB1808PRO is ideal for sportswear, fashion textiles, home decoration fabrics, and industrial sublimation printing.
ER-SUB1808PRO Sublimation Printer Video
ER-SUB1804PRO Sublimation Printer Details

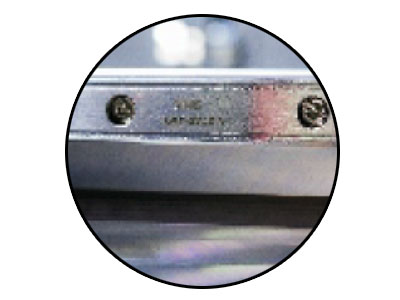

THK high-precision mute guiderail

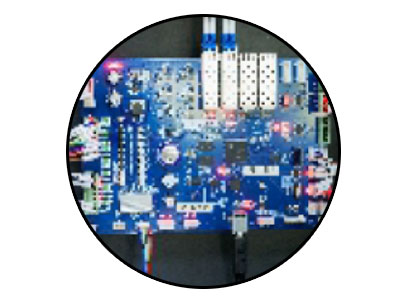

Leading industry hoson mainboard

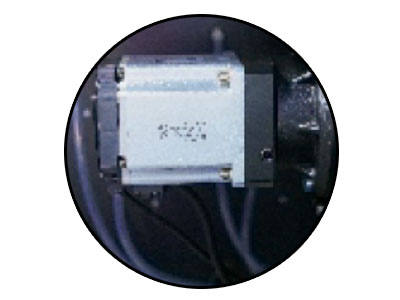

200W direct-current servo motor

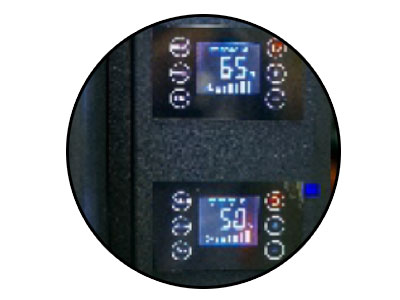

Precise control external drying system

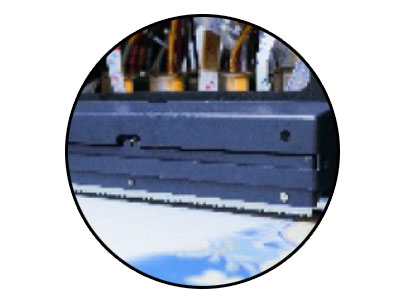

High safety carrigae anti-collision

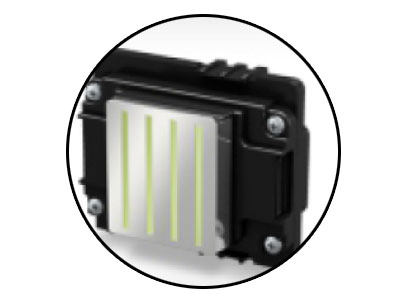

Oringinal Epson I3200-A1 printheads
ER-SUB1808PRO Sublimation Printer Specification
Working EnvironmentTempreature 15℃-32℃， Humidity:40%-70%(non-condensing)
| Model No. | ER-SUB1808PRO |
| Printing Speed | CMYK:1pass(720*600dpi) 360sqm/h2pass(720*1200dpi) 200sqm/h3pass(720*1800dpi) 135sqm/h CMYK+LCLMLKLLK:2pass(720*1200dpi) 200sqm/h4pass(720*2400dpi) 100sqm/h |
| Printer Head | 8pcs 13200-A1(3.5pl) |
| Max Print Size | 1800mm |
| Machine Type | Automatic, Heavy Body, Digital Printer |
| Board | Hoson |
| Ink Colors | CMYK/CMYK+LCLMLKLLK/Fluorescent red+fluorescent yellow+royal blue+orange+red+dark green |
| Ink Type | Sublimation dispersion ink |
| Printing Resolution | 1200 dpi |
| Ink Supply | Positive+automatic ink replenishment |
| Rip software | Ripprint/Maintop6.0/Photoprint/Onyx/Printfactory |
| Drying system | External automatic air drying system all in one |
| Materials to Print | Sunlimation Paper |
| Feeding&Take-up system | Air shafts,automatic |
| Voltage | AC220V±5%,16A,50HZ+1 |
| Interface | USB3.0 |
| Operation System | WINDOWS 7/WINDOWS 10 |
| Power Consumption | Printing system 2000W Drying system Max 7500w |
| Max Media Length | 500 meter |
| Working Environment | Tempreature 15°C-32°CHumidity:40%-70%(non-condensing) |
| File Format | JPG,TIFF,PDF etc |
| Machine Size | 3361*1285*1488mm |
| Hardware requirements | CPUi7, hard disk 500G,running memory 16G,ATI independent display 4G memory |
ER-SUB1808PRO Sublimation Printer Application
ER-SUB1808PRO Sublimation Printer FAQ
