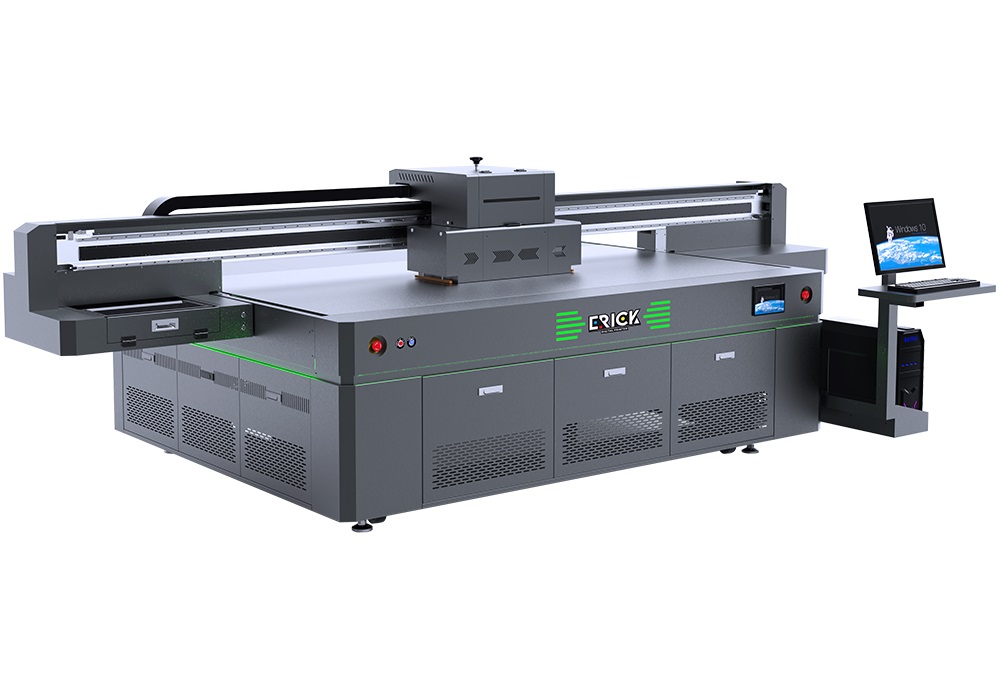

The ER-UV2513MAX UV Flatbed Printer, equipped with an AI scanner, represents the currentadvanced level of UV flatbed printing technology. Through automation, intelligence, andhigh precision, it solves the biggest pain point in traditional printing-manual positioning-making it particularly suitable for large-scale production enterprises looking to improveproduction efficiency, product quality, and achieve complex processes.
ER-UV2513MAX UV Flatbed Printer Video
ER-UV2513MAX UV Flatbed Printer Details

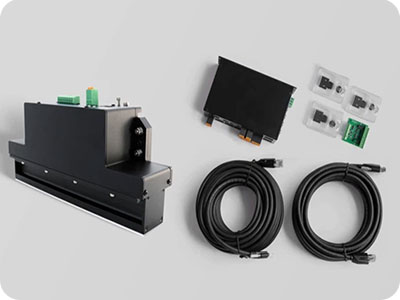

1200dpi Latest UV Carriage Ai Scanner
scans the surface of the object (accuracy ±0.1mm) and automatically generates a 3D model to adapt the printing path.

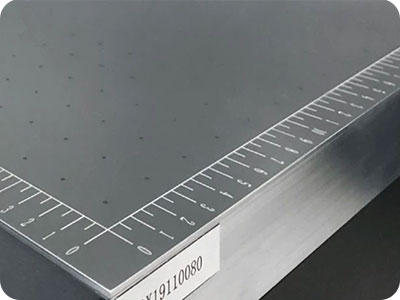

Oxidation treated high precision platform
The anti-scratch ability is improved by more than 5 times, which is suitable for long-term bearing of hard materials such as metal and glass.

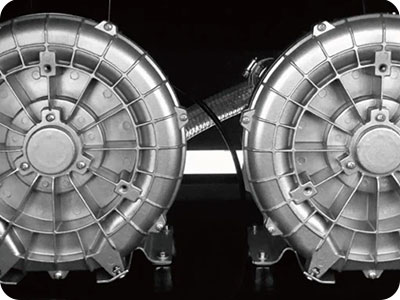

Double built-in high-power independent vacuum pump
Dual pumps control the vacuum adsorption of the front/rear area or left/right area of the platform respectively (can be adjusted from -5kPa to -12kPa individually), adapting to materials of different sizes.

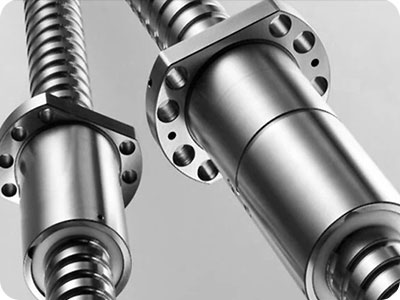

Screw rod type transmission for the Y axis
real-time position correction through grating ruler (resolution 0.1μm) to eliminate backlash error.

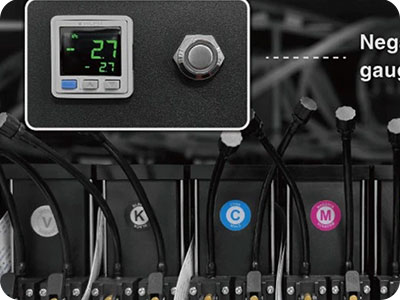

None after-service negative Ink supply system
Prevent ink dripping from the nozzle (ink leakage when negative pressure is insufficient).
Standard Quality anti-static device
Ensure the cleanliness of the material surface by neutralizing static electricity, and avoid impurities causing printing defects (such as white spots and scratches).
ER-UV2513MAX UV Flatbed Printer Specification
| Print Software | Ripprint/Phototprint |
| Printing Speed | I3200U: 4pass 10㎡/h 6pass 8㎡/h Ricoh G6: 4pass 18㎡/h 6pass 12㎡/h |
| Machine Functions | 100mm Print Height, UV Carriage Scanner,Seperated Packing Body |
| Printing Heads | 13200U/G5/G6 |
| Machine Configurations | Hiwin Guideral. Leadshine Motor. Neaative Canpina Stations All-In-One Computer(optional),Maglev Transportaltion System Optional |
| All-In-One Computer Configurations | 8th Generations i7-8750H Processor,64G/128G,15.6-inch 1920×1080 Touch Screen |
| Print Colors | CMYK W V |
| Working Environment | 4200/2100 1500mm Spa0e,7000W Electricity Powwr, 25C-30C humidty50%-70% |
| Package Info | 4300*1200*1600 1350KG,15.1m³ |
ER-UV2513MAX UV Flatbed Printer Applications
ER-UV2513MAX UV Flatbed Printer FAQ
ER-UV2513MAX UV Flatbed Printer FAQFirst, in terms of size, this machine belongs to the industrial category; secondly, in terms of configuration, this machine uses a magnetic levitation system, resulting in high quality.
Problem: Abnormal noise occurs during left-to-right movement.
Solution: The sheet metal on the crossbeam is deformed and is rubbing against the sheet metal on the printhead carriage. Adjust the mounting position of the sheet metal; additionally, it may be necessary to manually bend the sheet metal back into shape.
Problem: Height detection is abnormal. The “Up” and “Down” buttons function correctly, but errors occur specifically during automatic height detection.
Solution: The issue was traced to the height-sensing limit switch. Upon disassembly, ink was found inside the switch—causing a poor electrical connection—which had leaked in from the secondary ink bottle. The problem was resolved by reconnecting the tubing and replacing the limit switch.
Problem: Maintenance procedures for the 2513MAX model during extended holidays.
Solution: Apply moisturizing fluid to the printhead capping station, and perform standard manual physical maintenance procedures.
Problem: The optical fiber connection between the mainboard and the head board has failed.
Solution: The printhead board reported an “A” error, indicating a communication failure between the mainboard and the head board. The issue was resolved by disconnecting and then reconnecting the optical fiber cable.
An AI UV flatbed printer is an advanced industrial printing machine equipped with an intelligent scanning system that automatically detects material position and performs precise alignment before printing. Compared with traditional UV printers, it eliminates manual positioning, reduces human error, and significantly improves production efficiency and print consistency.
An AI UV flatbed printer is an advanced industrial printing machine equipped with an intelligent scanning system that automatically detects material position and performs precise alignment before printing. Compared with traditional UV printers, it eliminates manual positioning, reduces human error, and significantly improves production efficiency and print consistency.
The 2513 AI UV flatbed printer supports printing on a wide range of rigid and flat materials, including acrylic, glass, metal, wood, PVC, ceramic, and plastic. Its UV curing technology ensures strong adhesion and vibrant color output across different surfaces.
This AI UV flatbed printer is widely used in industries such as advertising signage, interior decoration, packaging, industrial panel printing, and customized product manufacturing, where high precision and efficiency are required.
The printer delivers high-resolution printing with sharp details, vibrant colors, and excellent durability. UV curing technology ensures that prints are scratch-resistant, waterproof, and long-lasting, even in demanding environments.
