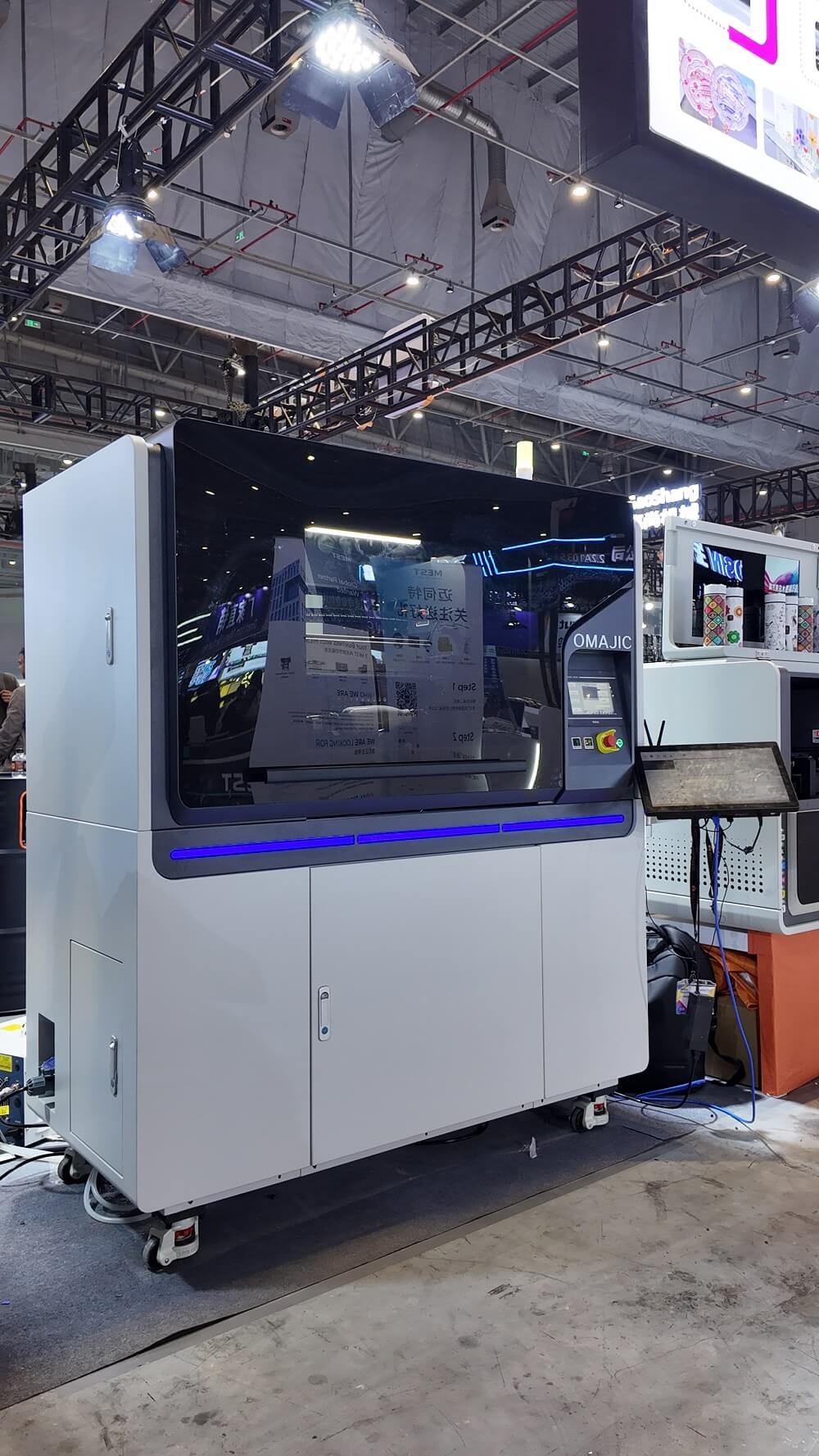

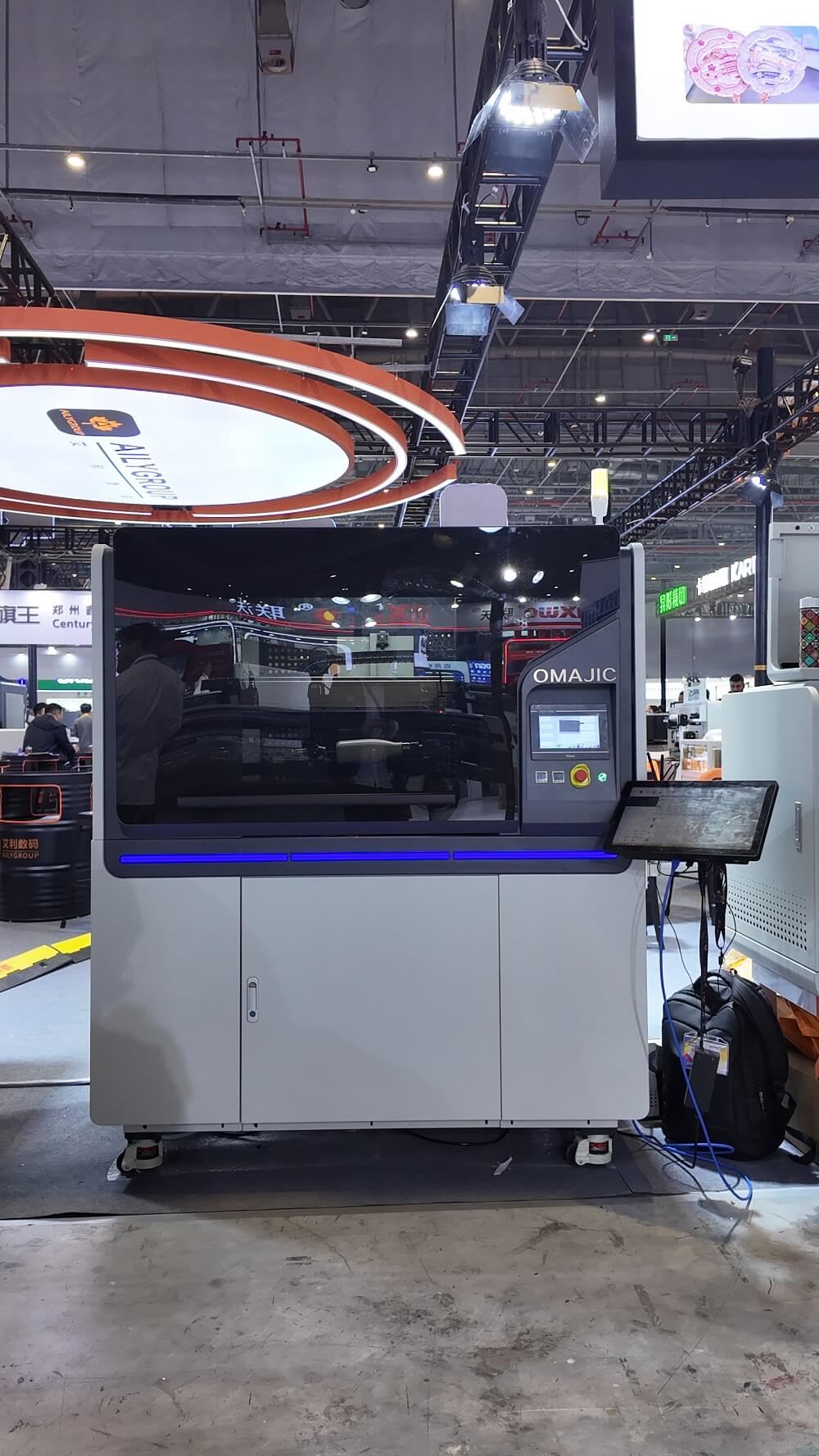

Cylindrical printers are playing an increasingly vital role in the fields of modern personalized customization and industrial decorative printing. From ubiquitous vacuum flasks and cosmetic bottles to collectible art-edition liquor bottles, the exquisite patterns adorning their surfaces are increasingly produced by these digital printing systems specifically designed for curved surfaces. The ability of cylindrical printers to stand out from traditional printing methods and execute curved-surface printing tasks with high efficiency and precision stems primarily from several key technological breakthroughs.
360° Seamless Stitching and Helical Printing
For cylindrical printing, the greatest technical challenge lies in ensuring that a flat pattern connects perfectly end-to-end when wrapped around a cylindrical surface. Modern cylindrical printers achieve this by deeply synchronizing high-precision servo motors with printhead firing timing; this aligns rotational movement with ink-jetting actions, ensuring precise pattern edge alignment and a seamless visual result. Building on this, some high-end models feature a “helical” printing mode: the cylinder rotates continuously at high speed while the printhead moves axially, causing ink droplets to land in a spiral trajectory. This method eliminates the seam marks often caused by traditional stepping movements and significantly boosts printing speed.
High-Drop Printing Capability
Traditional printing technologies struggle with objects featuring textured or uneven surfaces, as variations in the distance between the printhead and the surface can cause ink droplets to drift or spread. Cylindrical printers overcome this by using sophisticated software algorithms to control droplet size and jetting direction in real-time, applying intelligent compensation at uneven edges. The system automatically adjusts ink volume over recessed areas and precisely controls landing points over raised areas, preventing issues like ink misting or blurred edges. Even on cosmetic bottles with spiral grooves or liquor bottles with embossed designs, the printers produce patterns with sharp edges and rich colors, accommodating an effective drop height of up to 1.8 centimeters.
Visual Positioning System
High-end models are equipped with an automatic visual positioning system that acts as a pair of “smart eyes” for the equipment. Before printing, the system rapidly scans the workpiece, automatically identifying its position, angle, and contours. It then compares this data against a preset template to calculate precise compensation values, enabling a “scan-and-print” workflow. Even with slight deviations in workpiece placement, the system automatically adjusts the printing starting point to ensure highly consistent pattern positioning across mass-produced items, thereby significantly reducing the need for manual intervention and lowering the scrap rate.
UV-LED Cold Light Source Curing
Compared to traditional mercury lamps, UV-LED lamps offer instant-on capabilities without the need for warm-up time; this not only saves energy but also greatly enhances operational efficiency. Crucially, their “cold light source” characteristic means they generate virtually no thermal radiation during operation, allowing for safe use on heat-sensitive materials—such as plastics and acrylic—without causing heat-induced deformation. Furthermore, they boast a lifespan far exceeding that of mercury lamps and are free from harmful substances like mercury, aligning with modern eco-friendly standards.
Broad Material Compatibility
By combining specialized UV inks with pre-treatment coatings tailored to specific substrates, the cylindrical printer achieves strong adhesion on a wide range of materials, including metal, glass, plastic, ceramics, and wood. The finished products feature vibrant colors and intricate patterns, along with excellent durability—including water resistance, scratch resistance, and UV stability—ensuring long-lasting quality. These printers are widely used across numerous sectors, including handicrafts, consumer goods, and promotional gifts.
In summary, by leveraging these synergistic core technologies, the cylindrical printer brings the precision and efficiency of digital printing to the realm of curved-surface printing, establishing itself as an indispensable production tool in the era of personalization.
