In the booming custom packaging and promotional merchandise industry, seamless full-wrap printing on cylindrical products has become a core competitive advantage for printing factories, cosmetic brands, beverage manufacturers and gift customization shops. The OM-C180PRO-G6 UV Cylinder Printer is an industrial-grade rotary UV printing machine built exclusively for round, curved and irregular cylindrical items. Equipped with high-performance Ricoh GH2220 G4/G6 printheads, it delivers photorealistic, scratch-proof, waterproof full-color prints directly onto bottles, cups, cosmetic jars and pen holders, completely replacing outdated screen printing and sticker labeling solutions.

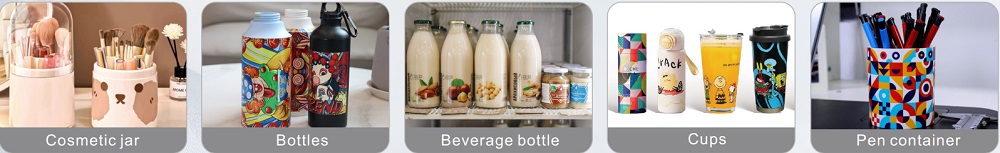

Wide Application Scenarios
The OM-C180PRO-G6 rotary UV printer supports a wide range of cylindrical and curved products across multiple industries:
- Cosmetic Packaging: Cream jars, skincare bottles, perfume tubes, cosmetic containers
- Beverage & Drinkware: Water bottles, tumblers, coffee cups, beer cans, milk bottles
- Promotional Gifts: Pen holders, customized mugs, corporate gift products
- Irregular Curved Products: Tapered cylinders, special-shaped round packaging
The printer supports direct printing on various materials including glass, stainless steel, plastic, ceramic, aluminum, and acrylic without additional labels or complicated pre-treatment.
Core Competitive Advantages of OM-C180PRO-G6
1. Ricoh Industrial Printheads for High-Speed Production
The OM-C180PRO-G6 supports 4-6 Ricoh GH2220 G4/G6 printheads, combined with BYHX professional control board and Leadshine precision drive motors, ensuring stable inkjet performance and efficient production.
- 4 G6 Heads: CMYK printing approximately 35 seconds, CMYK+White 70 seconds, CMYK+White+Varnish 85 seconds
- 5 G4 Heads: CMYK printing approximately 40 seconds, CMYK+White 60 seconds, CMYK+White+Varnish 90 seconds
- 6 GH2220 Heads: CMYK+White approximately 45 seconds, CMYK+White+Varnish 100 seconds
With CMYK+White+Varnish color configuration, the printer produces vibrant colors, strong white ink coverage, and premium glossy finishing effects.

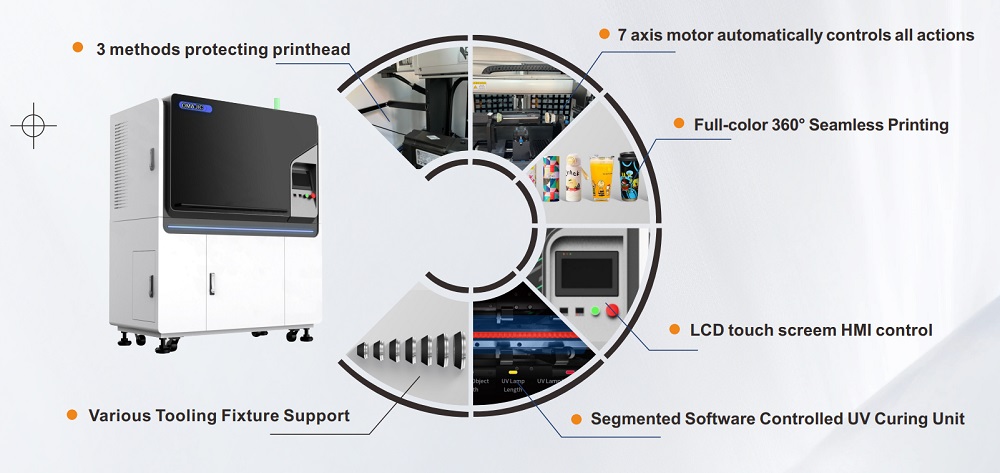

2. 7-Axis Automatic Control & 360° Seamless Rotary Printing
The advanced 7-axis servo motor system provides precise rotation, lifting, and positioning control to achieve seamless 360-degree printing around cylindrical products.
It eliminates common issues such as printing seams, image misalignment, and uneven patterns found in traditional rotary printing. The system also supports irregular rotary printing for tapered and special-shaped products with a maximum printable length of 300mm.
3. Three-Layer Printhead Protection & Stable Ink Supply System
The integrated printhead protection system reduces risks from ink clogging, dust contamination, and mechanical collision. The negative pressure ink supply system ensures stable ink delivery during continuous production.
This design improves printhead lifespan and reduces maintenance costs for both small-batch customization and industrial production.
4. Intelligent UV Curing System & LCD Touch Operation
The segmented UV curing system automatically adjusts UV lamp power according to printing areas, ensuring fast and even ink curing.
Finished prints feature excellent waterproof performance, scratch resistance, and long-lasting color durability. The LCD touch control system allows operators to easily manage printing parameters, fixtures, and production settings.
5. Flexible Fixtures & Industrial Hardware Design
The OM-C180PRO-G6 supports interchangeable fixtures for different bottle diameters, jar sizes, and cup shapes. The integrated industrial cabinet structure provides stable operation and easy maintenance.
- Machine Dimension: 1200 × 980 × 1700mm
- Power Consumption: 3000W
- Working Environment: 25℃-30℃, Humidity 50%-70%
6. Compact Structure & Safe Export Packaging
The compact machine design saves production space while maintaining industrial reliability. Standard export wooden packaging ensures safe transportation worldwide.
- Package Size: 1560 × 1030 × 1800mm
- Machine Weight: 420KG
Why Choose OM-C180PRO-G6 Instead of Traditional Printing Methods?
- No Minimum Order Quantity: Suitable for both single customized products and mass production orders.
- No Mold or Plate Cost: Digital printing eliminates screen making and setup expenses.
- Premium Visual Effects: White ink and varnish layers create high-end packaging appearance.
- Fast Production Speed: Complete full-color cylindrical printing within 35-100 seconds.
- Durable Printing Results: UV cured ink provides strong adhesion without peeling or fading.
Who Is This Printer For?
- Cosmetic packaging factories and skincare brands
- Custom drinkware and tumbler manufacturers
- Advertising printing companies and gift customization businesses
- Beverage, wine, and aluminum can packaging producers
- Small and medium printing companies expanding rotary printing services
Conclusion
The OM-C180PRO-G6 UV Cylinder Printer combines Ricoh industrial printhead technology, 7-axis automatic rotary control, and intelligent UV curing technology to provide high-quality 360° seamless printing solutions for cylindrical products.
With flexible application capabilities, low production costs, and excellent printing durability, it is an ideal solution for businesses looking to expand customized packaging, promotional products, and premium bottle printing markets.
Contact us today to get machine specifications, printing samples, and customized quotation for your cylindrical printing business.
| Item | Specification |
|---|---|
| Model | OM-C180PRO-G6 |
| Printhead | 4–6 pcs Ricoh GH2220 G4/G6 |
| Color System | CMYK + White + Varnish (CMYKWV) |
| Control System | BYHX Board + Leadshine Motor, Touch HMI |
| Printing Software | Photoprint |
| Max Media Length | 300mm |
| Printing Mode | 360° Seamless Rotary Printing, Irregular Cylinder Printing |
| Ink Supply | Negative Pressure Circulation Ink System |
| UV System | Segmented Software Controlled UV Curing Unit |
| Power Consumption | 3000W |
| Working Environment | Temperature: 25–30°C, Humidity: 50%–70% |
