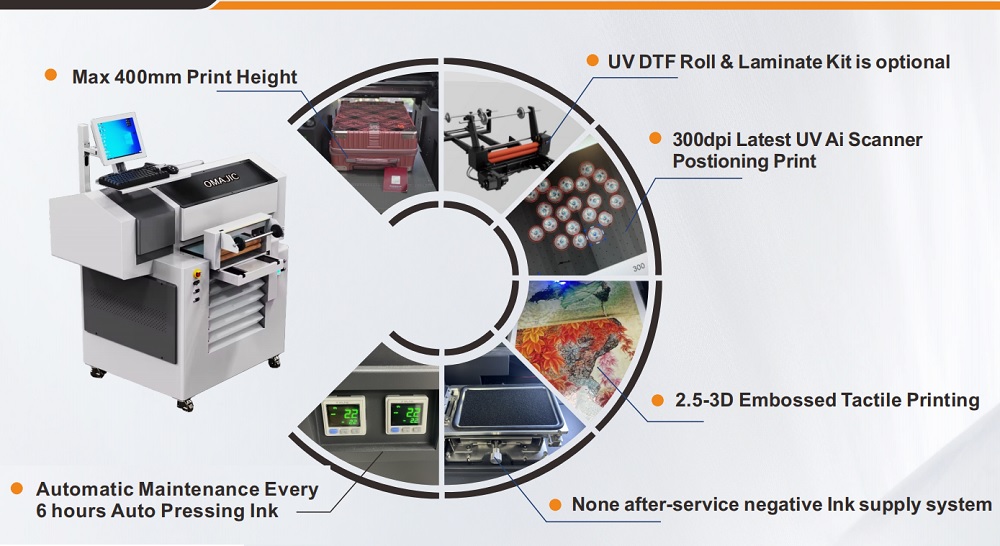

The UV4062 UV flatbed printer is a compact, high-performance industrial direct-to-substrate printing machine with a
400×620mm printing area. Designed for small-batch customization, personalized production, and multi-material printing,
it integrates precision inkjet technology, UV LED curing, and intelligent automation.

With excellent printing flexibility and reliable performance, the UV4062 is ideal for applications including advertising production,
custom gifts, home decoration, crafts, and small-scale industrial manufacturing.

Core Technical Specifications of UV4062 UV Flatbed Printer

Parameter	Details
Printing Area	400 × 620 mm (A2+ Format)
Maximum Printing Thickness	0–400 mm ultra-high drop capability
Print Head	Dual Epson I1600 Industrial Print Heads
Color Configuration	CMYK + White + Varnish (6-color standard)
Ink System	Negative pressure secondary ink tank, automatic white ink circulation, anti-clogging system
Curing System	Water-cooled UV LED cold light source, lamp life ≥20,000 hours, instant curing
Mechanical Structure	Heavy-duty steel frame, Hiwin linear guides, servo drive system, positioning accuracy ±0.01mm
Printing Platform	Segmented vacuum adsorption platform, automatic height measurement, anti-collision protection

Advanced Printing Technologies

1. Precision Print Head and Ink Supply System

The UV4062 is equipped with dual Epson I1600 industrial print heads, providing high-resolution printing performance and stable production capability.

• High-Resolution Printing:
  Supports variable droplet technology (3.5–7pl) for sharp details, smooth gradients, and accurate color reproduction.
• Stable Negative Pressure Ink Supply:
  The dynamic negative pressure system ensures continuous ink flow and consistent printing quality during long production cycles.
• Automatic White Ink Circulation:
  Prevents white ink sedimentation and nozzle blockage, improving reliability for daily operation.
• Independent Color Channels:
  Separate CMYK, white, and varnish channels enable full-color printing, white underbase printing, and glossy/matte finishing effects.

2. Intelligent Mechanical and Automation Features

• • High-Precision Motion System:
    Industrial linear guides and servo motors provide stable movement with positioning accuracy up to ±0.01mm.

• Automatic Height Detection:
  The intelligent sensor automatically detects material thickness and protects print heads from collision damage.
• Smart Control System:
  The user-friendly control panel supports material presets, print head monitoring, and UV lamp adjustment.
• Real-Time Ink Monitoring:
  Low ink level alarm and intelligent monitoring improve production efficiency.

3. Eco-Friendly UV LED Curing Technology

• Cold Curing Process:
  UV LED cold light technology minimizes heat impact and is suitable for sensitive materials such as acrylic, PVC, and leather.
• Instant Drying:
  Printed products can be immediately processed after printing, including cutting, laminating, and bending.
• Durable Printing Performance:
  UV inks provide waterproof, scratch-resistant, and UV-resistant results suitable for long-term applications.

Advantages Compared with Traditional Printing Methods

1. Compact and Versatile Design

The UV4062 combines industrial-grade performance with a compact footprint, making it suitable for small workshops, design studios, and customization businesses.

2. Multi-Material Direct Printing

Unlike traditional printing methods, the UV4062 can print directly on various rigid and flexible materials, including:

• Acrylic
• PVC
• Glass
• Metal
• Wood
• Ceramic
• Leather
• Fabric
• Soft Film Materials

3. No Plate Making and Fast Turnaround

UV direct printing eliminates traditional plate-making processes, reducing production costs and allowing businesses to handle single-piece customization and small-batch orders efficiently.

4. High Definition Printing and Special Effects

The UV4062 supports high-quality image printing with additional effects such as:

• Glossy finishing
• Matte finishing
• Embossed texture effects
• Crystal AB film effects

5. Low Operating Cost

Energy-efficient UV LED curing technology, reduced maintenance requirements, and high material utilization help businesses achieve better profitability.

Main Applications of UV4062 UV Flatbed Printer

Personalized Gift Production

• Phone cases
• Keychains
• Photo frames
• Custom puzzles
• Promotional products

Advertising and Signage

• Acrylic signs
• PVC display boards
• Metal nameplates
• Retail POP displays

Home Decoration

• Ceramic tiles
• Glass partitions
• Wooden wall panels
• Customized furniture decoration

Industrial Components

• Metal labels
• Plastic control panels
• Electronic housings
• Small mechanical parts

Craft and Artwork Production

• Custom art printing
• Resin crafts
• 3D decorative products

How to Choose the Right UV4062 Configuration

• Print Head Selection:
  Epson I1600 provides cost-effective high-resolution printing, while Ricoh Gen6 offers higher production speed and durability.
• Print Head Quantity:
  Dual-head configuration provides a balance between speed, quality, and investment cost.
• Material Thickness:
  The 0–400mm printing height supports various 3D objects and thick substrates.
• Optional Upgrades:
  CCD visual positioning, automatic feeding system, cylindrical printing module, and advanced varnish solutions are available.

Why Choose UV4062 UV Flatbed Printer?

The UV4062 is a compact industrial-grade UV printing solution that bridges the gap between desktop printers and large-format industrial machines.

It provides professional print quality, multi-material compatibility, intelligent automation, and reliable performance in a space-saving design.

For entrepreneurs, customization businesses, advertising companies, and small manufacturers, the UV4062 offers an efficient way to enter the growing personalized printing market with strong return on investment.

UV4062 Product Information

Product Name	UV4062 UV Flatbed Printer
Product Category	Compact Industrial UV Printer
Printing Technology	UV LED Direct-to-Substrate Printing
Printing Area	400×620mm
Print Heads	Epson I1600
Applications	Advertising, Custom Products, Gifts, Decoration, Small Batch Manufacturing
Compatible Materials	Acrylic, Glass, Wood, Metal, PVC, Leather, Ceramic

Frequently Asked Questions

What materials can the UV4062 UV flatbed printer print on?

The UV4062 can directly print on acrylic, glass, wood, metal, PVC, ceramic, leather, and other rigid or flexible materials.

What is the printing size of the UV4062?

The UV4062 provides a 400×620mm printing area, suitable for A2+ format applications.

Is the UV4062 suitable for small-batch production?

Yes. The compact industrial design makes it ideal for personalized products, customization businesses, advertising production, and short-run manufacturing.

What print heads are used in the UV4062?

The UV4062 uses Epson I1600 industrial print heads, delivering high-resolution output and stable printing performance.
